PLUMBING MACHINES & TOOLS
ANGLE BAR WORKS

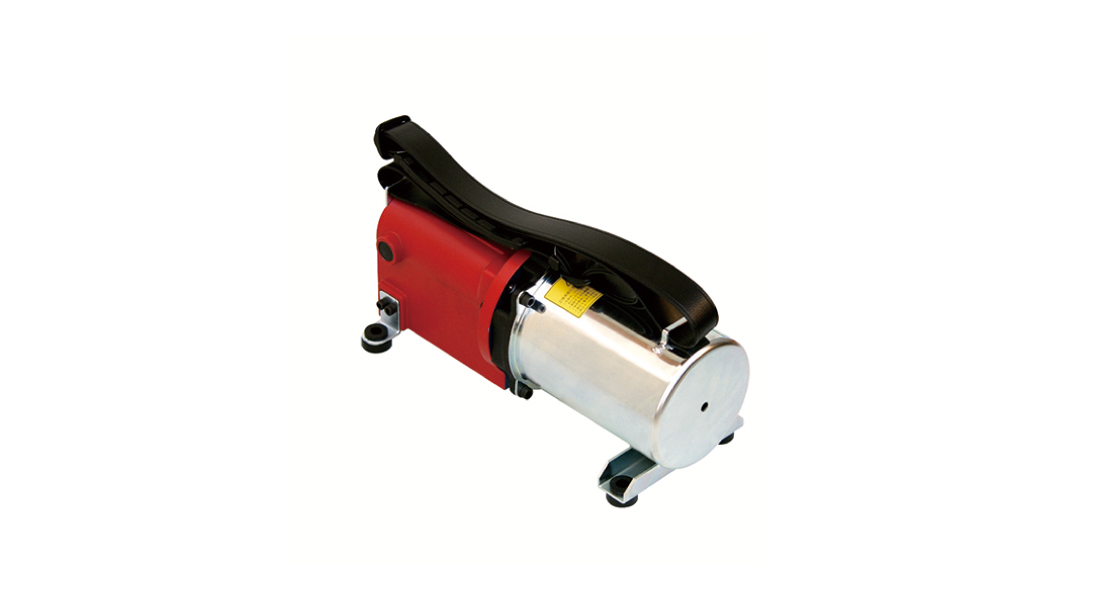

Hydraulic Pump Unit
- Optional accessories
SPECIFICATIONS
| Item | Code No. | Max. working pressure | Volume of discharge | Effective oil volume | Motor | Weight | Dimension |
|---|---|---|---|---|---|---|---|
| HYDRAULIC PUMP UNIT with HAND SWITCH | NZ35FL | 68.6MPa（700kgf/cm2） | 0.2L／min | 0.8L | 100V, 350W（50/60Hz） | 7.5kg | L：322×W：120×H：139mm |
| HYDRAULIC PUMP UNIT with FOOT SWITCH | NZ35FLF | 68.6MPa（700kgf/cm2） | 0.2L／min | 0.8L | 100V, 350W（50/60Hz） | 7.5kg | L：322×W：120×H：139mm |
| HIGH SPEED HYDRAULIC PUMP UNIT with FOOT SWITCH | NZ45SV | 68.6MPa（700kgf/cm2） | 0.35L／min | 2L | 100V, 400W（50/60Hz） | 17.2kg | L：212×W：211×H：340mm |
Use hydraulic pump of 68.7MPa (700kgf/c㎡) if purchase ANGLE MACHINE 75, main unit only. Hydraulic coupler must be by same manufacturer.
Voltage made to order.
