Electric Wire Lift For safety and efficient work
- Electric + Manual
.jpg)
.jpg)
Possible to fine-adjust lifting speed
Switchable to manual when no power or blackout
No sudden jump out by repulsion, smooth lifting
SPECIFICATIONS

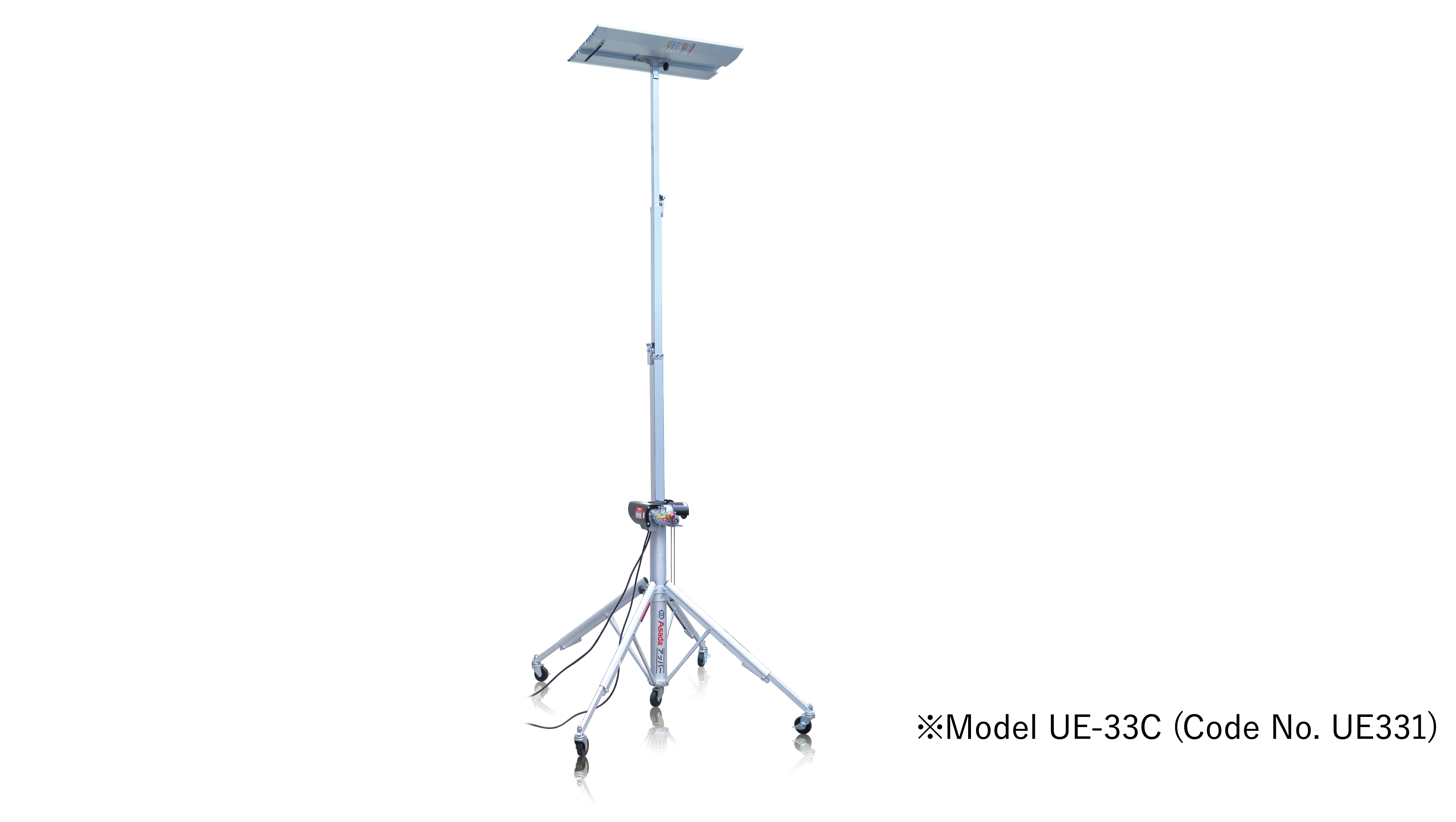

| Item | ELECTRIC WIRE LIFT UE30 | ELECTRIC WIRE LIFT UE37 | ELECTRIC WIRE LIFT UE33C | ELECTRIC WIRE LIFT UE40C |
|---|---|---|---|---|
| Code No. | UE301 | UE371 | UE331 | UE401 |
| Overall dimension | With open LEGS： 1,010×1,030×1,085mm | With open LEGS： 1,110×1,110×1,155mm | With open LEGS： 1,120×1,220×1,190mm | With open LEGS： 1,150×1,150×1,240mm |
| Storage dimension | 310×250×1,075mm | 310×250×1,135mm | 330×230×1,170mm | 310×260×1,220mm |
| Top-board dimension | 745×435mm | 745×435mm | 745×435mm | 745×435mm |
| Weight | 26kg（including TOP-BOARD） | 31kg（including TOP-BOARD） | 29kg（including TOP-BOARD） | 34kg（including TOP-BOARD） |
| Height (Max) | 3.04m | 3.75m | 3.13m／3.26m (with extension adaptor) | 3.84m／3.97m (with extension adaptor) |
| Height (Min) | 1.09m | 1.15m | 1.19m／1.32m (with extension adaptor) | 1.24m／1.37m (with extension adaptor) |
| Lift time | Up：24sec／Down：23sec | Up：40sec／Down：35sec | Up：24sec／Down：23sec | Up：40down／Down：35sec |
| Motor | 220-240V・50/60Hz | 220-240V・50/60Hz | 220-240V・50/60Hz | 220-240V・50/60Hz |
| Load capacity with 5 legs | ～3m：150kg | ～3m ：120kg 3～3.5m ：100kg 3.5m～ ：80kg | ― | ― |
| Load capacity with 4 legs | ～3m：150kg | ～3m ：100kg 3～3.5m ：80kg 3.5m～ ：70kg | ― | ― |
| Load capacity | ― | ― | ～3m：120kg 3m～：100kg | ～3m ：120kg 3～3.5m ：100kg 3.5m～ ：80kg |
When using with 4 legs, load capacity varies depending on the usage.
Load capacity varies depending on the lifting height.
Voltage made to order.
FEATURES
Easy height adjustment
Can control the height sleeplessly by hand switch.
Single speed
Electric wire winch type and no sudden jump out.
Safety work
With over load protection & emergency switch.
Air compressor and carbon dioxide gas are not required
Only ordinal power source is required.
Even on steps, a slope
Individually adjustable legs enable to stand horizontally even bad scaffold. ※UE-30・UE-37

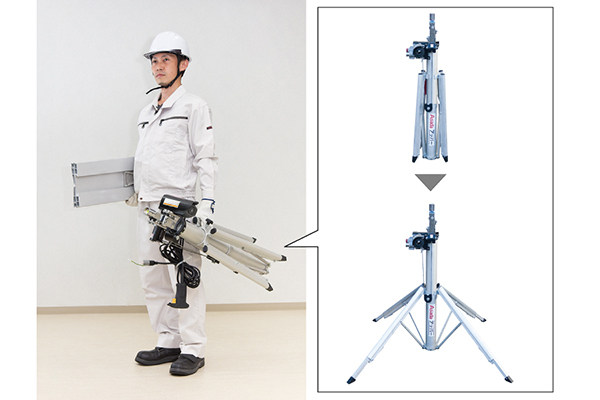

Easy set up
No tools are required for set up.
Easy positioning
Casters makes horizontal positioning easy.
